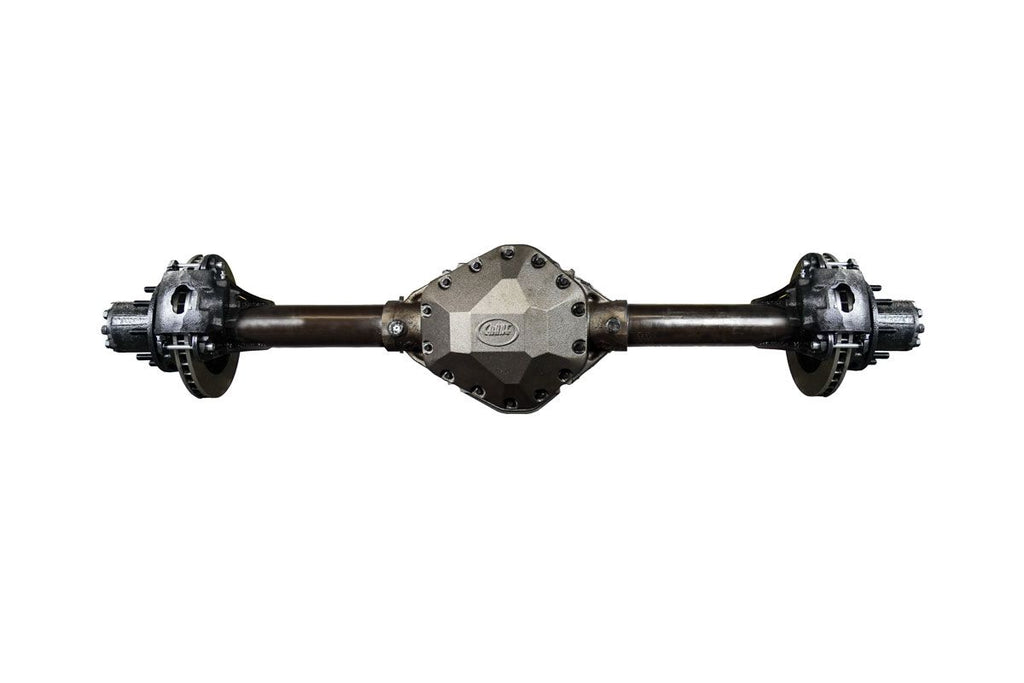

14 Bolt 30 Spline Rear Ready to Ride Axle

  • Sale
  • Regular price $4,433.91



Crane Axle’s heavy-duty 14 Bolt Axle Assemblies start with a Brand New USA Made 14 Bolt Axle Housing that is cast from high-strength nodular iron. Our team expertly machine presses 4” x ½” (.500”) wall DOM Tubes into that housing for increased strength to resist bending & torsion. From there, the axles are assembled to your chosen Specs.

100% designed, manufactured and assembled in the USA

Quality Installed Components

The chosen components for our Axle Assemblies are the best that we could find on the market. You’ll end up with a strong and durable end product equipped with components from Timken, Yukon, Dana/Spicer, ARB, Wilwood, and/or others.

Lifetime Warranties

Ride without worry. Many of the parts and components used in Crane Axle Assemblies are covered by lifetime warranties.

  • Yukon Axle Shafts- Limited Lifetime warranty against manufacturer defects for as long as you own the vehicle

  • RCV Axle Shafts - Lifetime Warranty against breakage up to a 43" tire

Standard WMS choices

We offer standard Wheel Mount Surface choices of 65", 67", 69" (STD GM 1 Ton Width) and 72" widths. Pick the width that works best for your project! Custom Wheel Mount Surfaces can also be done by calling a representative at (931) 807-8013.

Included in this Assembly:

The base price is a complete full floating rear axle assembly ready for your link mounts and shock mounts. This assembly includes a new 14 Bolt Center Section with 4" x .500 wall DOM tubes. We TIG OE 30 spline spindles in. We then add shot peened OE wheel hubs with new Timken bearings. The ring & pinion ratio of your choice is professionally installed with Timken bearings.

  • The brake options are 12.5" 3/4 ton GM brake kit or our 14" lightweight brake package.
  • Differential cover options are a 14 Bolt Cover or a 13 Bolt Cover. If a 13 Bolt Cover is chosen, we shave the housing for you.
  • Choose what locker type you want. Standard is a 30 spline spool. You can choose a Yukon Grizzly locker or ARB air locker.
  • The standard axle shafts are Yukon 4340 14 bolt shafts. 4340 Or 300m double splined full float shafts with drive flanges may be optioned in.
  • We have standard widths for total wheel mount to wheel mount width. 65", 67", 69" (STD GM 1 Ton Width) and 72" widths. Pick the width that works best for your project! Custom Wheel Mount Surfaces can also be done by calling a representative at (931) 807-8013.
