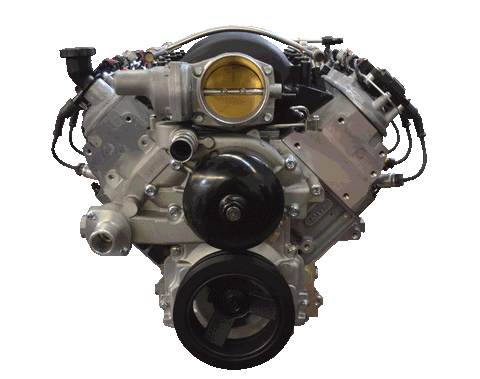

6.0L LS2/LQ9 Crate Engine - with Computer and Harness

6.0L LS2/LQ9 Crate Engine - with Computer and Harness

Regular price $7,000.00 USD
Regular price Sale price $7,000.00 USD
Sale Sold out
Hp Range
Motor Style

Big Power for Your Truck or SUV.

The 6.0 LQ9 was used in GM trucks and SUV applications from 2001-2005. LQ engines use a cast iron block and displace 6.0 liters with a 4.0-inch bore and lower 10.5:1 compression

The LS2 replaced the LS1 in 2005-2007 Corvettes and GTOs.  The bore was increased to 4.0 inches and it displaces 6.0 liters.  Other improvements were high flow intake manifolds and a 90 mm throttle body as well as increased 10.9:1 compression.  The LS2 retained the cathedral port LS6 cylinder heads.

FEATURES OF NEW CRATE ENGINES WITH WIRING HARNESS AND ECM

  • Flywheel or Flex-Plate
  • Harmonic Balancer
  • Water Pump
  • Intake Manifold with DBW Throttle Body
  • New DBW Gas Pedal
  • Fuel Rails
  • Fuel Injectors
  • AC Delco Ignition Coils
  • AC Delco Spark Plugs and Wires
  • Engine Management:
    • Custom Marine Grade Wiring Harness

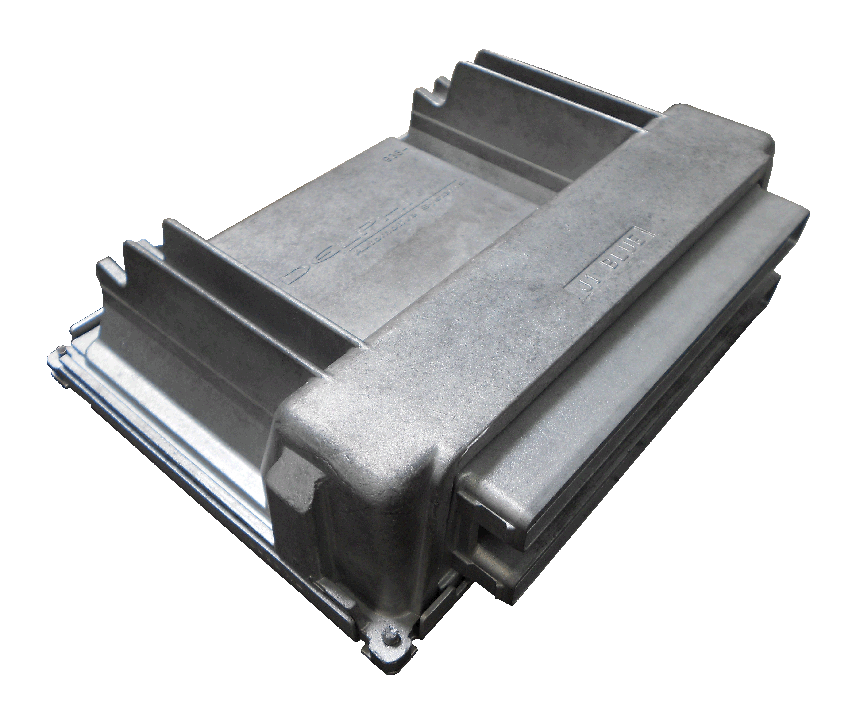

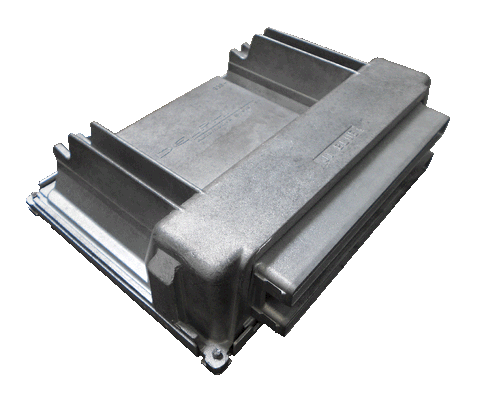

    • ECU with Turn Key Calibration
    • Electric Fan Controls
    • Fuel Pump Controls
    • Fuse Block and Relays

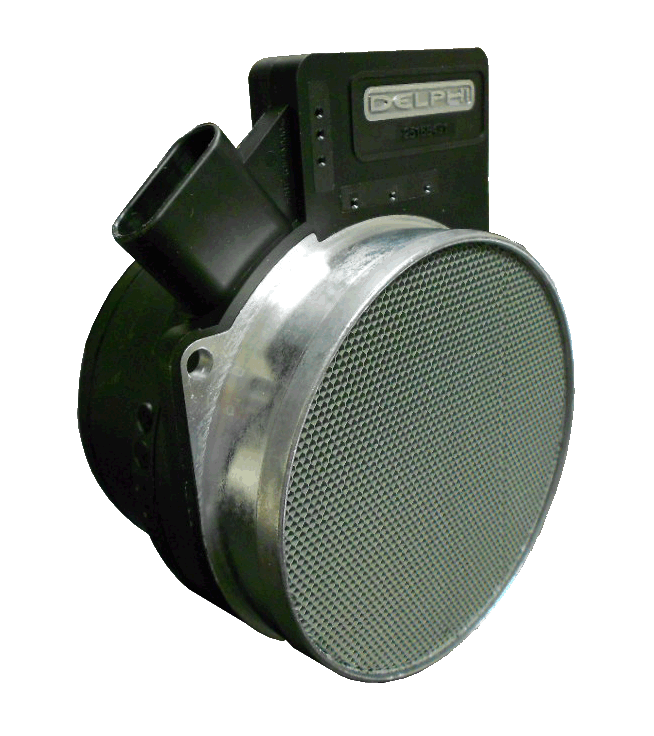

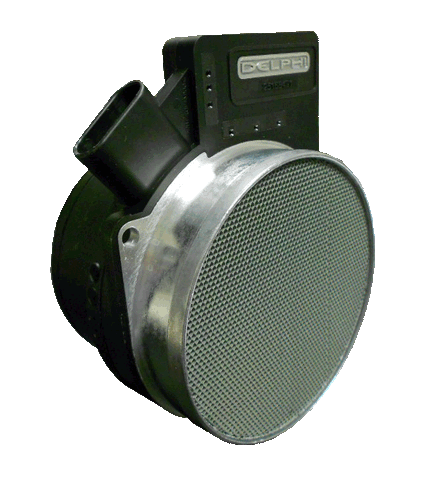

    • MAF Sensor
    • MAF Sensor Mounting Flange
    • O2 Sensors
    • O2 Sensor Bungs
  • Engine Oil and Filter
  • Engine Shipping Cradle
  • Test Run Prior to Shipment
    View full details

    Motor Specs

    LS2 580 hp Specs

    Cubic Inch / LTR's:402 / 6.56

    Horsepower:580Ft. Lbs.

    Troque:530

    Compression:10.9:1

    Aspiration: Normal

    Rev Limit RPM: 6600

    Block: Cast Iron

    Bore x Stroke: 4.00" x 4.00"

    Crankshaft: 4340 Forged Steel

    Rods: Forged H-Beam

    Pistons: Mahle Forged

    Heads: Cast Aluminum

    Chamber CC: 68cc

    Intake Port CC: 260cc

    Intake Port Style: Rectangle

    CNC Ported (Y/N): Yes

    Intake Valves: 2.160" SS

    Exhaust Valves: 1.590" SS

    Valve Springs: Double

    Retainers: Lightened Chromoly

    Rockers: 1.7:1

    Pushrods: 5/16" x 7.400" .080 Wall Chromoly

    Lifters: Delphi Hydraulic Roller

    Camshaft: Hydraulic Roller

    Timing Chain Set: Single HD Roller

    Intake Manifold: Composite

    Throttle Body: 90mm Mechanical

    LS2 470 hp Specs

    Cubic Inch / LTR's: 364 / 6.0

    Horsepower: 470Ft. Lbs.

    Torque: 450

    Compression: 10.9:1

    Aspiration: Normal

    Rev Limit RPM: 6800

    Block: Cast Iron

    Bore x Stroke: 4.00" x 3.62"

    Crankshaft: Nodular Iron

    Rods: Forged Powdered Metal

    Pistons: Mahle Forged

    Heads: Iron

    Chamber CC: 64.5cc

    Intake Port CC: 210cc

    Intake Port Style: Cathedral

    CNC Ported (Y/N): No

    Intake Valves: 2.00"

    Exhaust Valves: 1.55"

    Valve Springs: GM Beehive

    Retainers: Steel

    Rockers: 1.7:1

    Pushrods: 5/16" x 7.400"

    Lifters: Delphi Hydraulic Roller

    Camshaft: Hydraulic Roller

    Timing Chain Set: Single HD Roller

    Intake Manifold: Composite

    Throttle Body: 75mm mechanical

    Fuel System Style: EFI

    ECM: GM E38

    Harness: Included

    Air Filter: K&N with Outerware

    Fuel System: TK Stage 2

    LQ9 390 hp Specs

    Cubic Inch / LTR's: 364 / 6.0

    Horsepower: 390Ft. Lbs.

    Torque: 420

    Compression: 9.5:1

    Aspiration: Normal

    Rev Limit RPM: 6000

    Block: Cast Iron

    Bore x Stroke: 4.00 x 3.62"

    Crankshaft: Nodular Iron

    Rods: Forged Powdered Metal

    Pistons: Mahle Forged

    Heads: Cast Aluminum

    Chamber CC: 72cc

    Intake Port CC: 210cc

    Intake Port Style: Cathedral

    CNC Ported (Y/N): No

    Intake Valves: 2.00"

    Exhaust Valves: 1.55"

    Valve Springs: GM Beehive

    Retainers: Steel

    Rockers: 1.7:1

    Pushrods: 5/16 7.400

    Lifters: Delphi Hydraulic Roller

    Camshaft: Hydraulic Roller

    Timing Chain Set: Single HD Roller

    Intake Manifold: Composite

    Throttle Body: 75mm Mechanical

    ECM: LS1B

    Harness: Included

    LQ9 470 hp Specs

    Cubic Inch / LTR's: 364 / 6.0

    Horsepower: 450Ft. Lbs.

    Torque: 450

    Compression: 10.5:1

    Aspiration: Normal

    Rev Limit RPM: 6600

    Block: Cast Iron

    Bore x Stroke: 4.00" x 3.62"

    Crankshaft: Nodular Iron

    Rods: Forged Powdered Metal

    Pistons: Mahle Forged

    Heads: Cast Aluminum

    Chamber CC: 64.5cc

    Intake Port CC: 210cc

    Intake Port Style: Cathedral

    CNC Ported (Y/N): No

    Intake Valves: 2.00"

    Exhaust Valves: 1.55"

    Valve Springs: GM HD Beehive

    Retainers: Lightened Chromolly

    Rockers: 1.7:1

    Pushrods: 5/16 7.400 .080 Chromolly

    Lifters: Delphi Hydraulic Roller

    Camshaft: Hydraulic Roller

    Timing Chain Set: Single HD Roller

    Intake Manifold: Composite

    Throttle Body: 75mm Mechanical

    Fuel System Style: EFI

    ECM: LS1B

    Harness: Included

    Need Specific Specs? Let Us Know
