APE BUILT

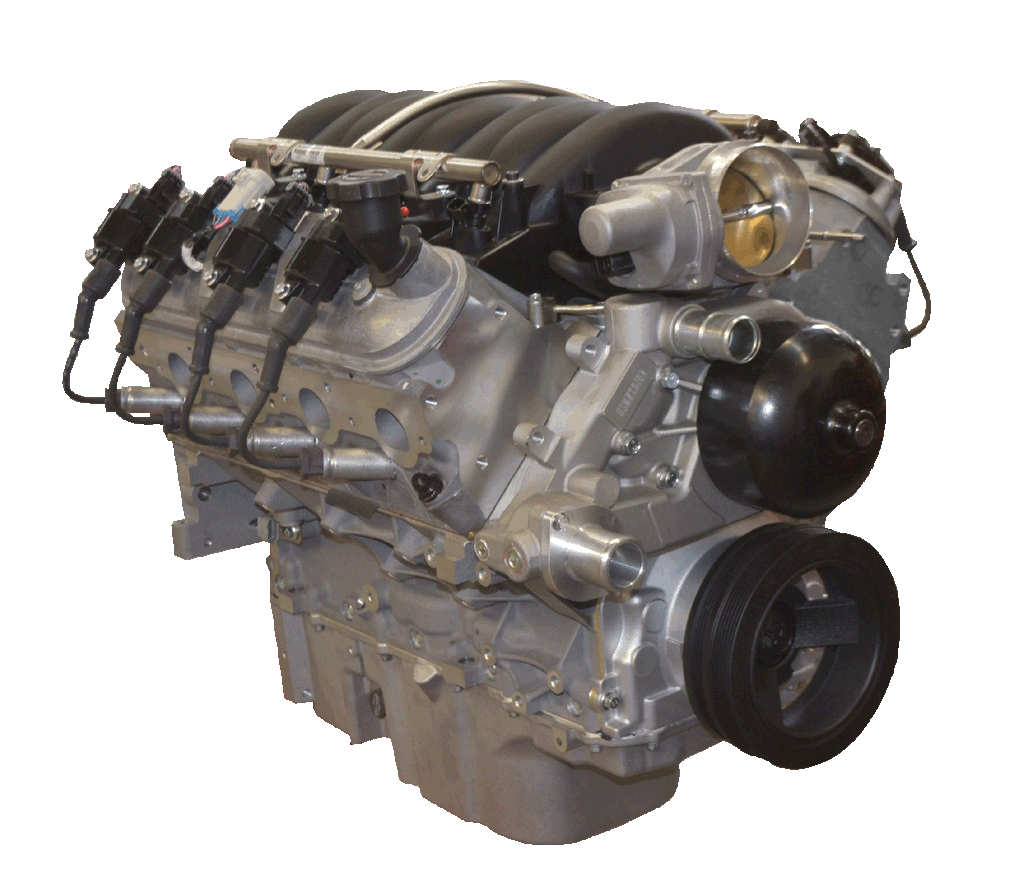

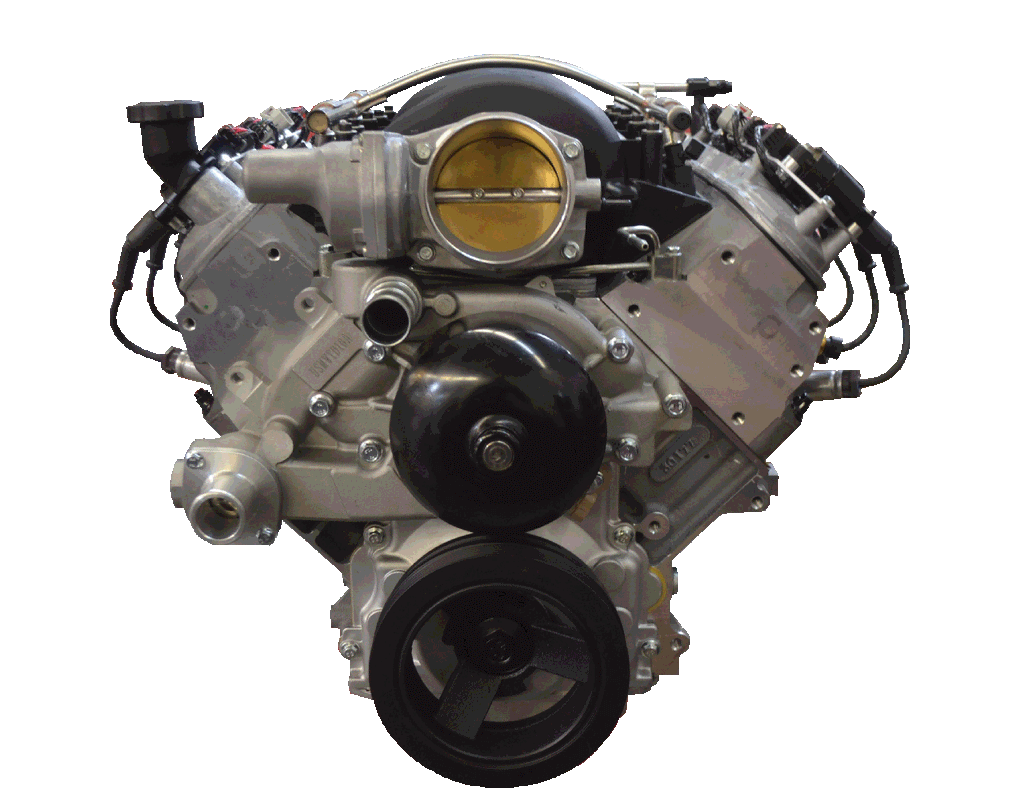

LS3 6.2L Crate Engine - with Computer and Harness

LS3 6.2L Crate Engine - with Computer and Harness

Regular price $9,500.00 USD
Regular price Sale price $9,500.00 USD
Sale Sold out
Hp Range

FEATURES OF NEW TURNKEY ENGINE CRATE ENGINES WITH WIRING HARNESS AND ECM

  • Flywheel or Flex-Plate
  • Harmonic Balancer
  • Water Pump
  • Intake Manifold with DBW Throttle Body
  • New DBW Gas Pedal
  • Fuel Rails
  • Fuel Injectors
  • AC Delco Ignition Coils
  • AC Delco Spark Plugs and Wires
  • Engine Management:
    • Custom Marine Grade Wiring Harness

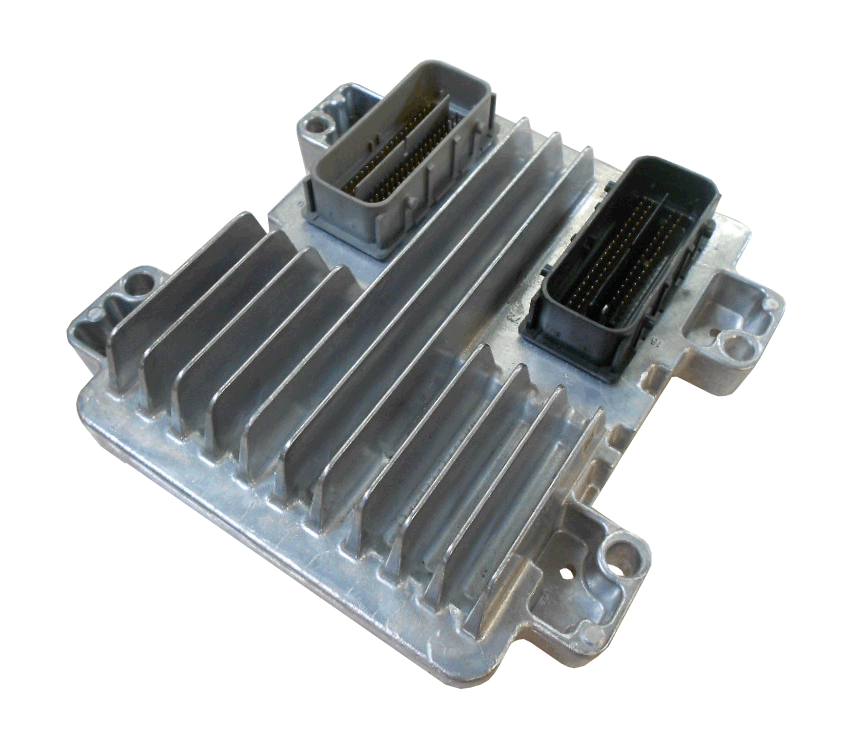

    • ECU with Turn Key Calibration
    • Electric Fan Controls
    • Fuel Pump Controls
    • Fuse Block and Relays
    • MAF Sensor
    • MAF Sensor Mounting Flange
    • O2 Sensors
    • O2 Sensor Bungs
  • Engine Oil and Filter
  • Engine Shipping Cradle
  • Test Run Prior to Shipment
View full details

Motor Specs

480 hp Specs

Cubic Inch / LTR's:372 / 6.2

Horsepower: 480

Ft. Lbs. Torque:490

Compression: 10.7.1

Aspiration: Normal

Rev Limit RPM: 6600

Block: Cast Iron

Bore x Stroke: 4.065" x 3.620"

Crankshaft: Nodular Iron

Rods: Forged Powdered Metal

Pistons: Mahle Hypereutectic Alum.

Heads: Cast Aluminum

Chamber CC:70cc

Intake Port CC: 260cc

Intake Port Style: Rectangle

CNC Ported (Y/N): No

Intake Valves: 2.160" Hollow Stem

Exhaust Valves: 1.590"

Valve Springs: GM Beehive

Retainers: Steel

Rockers: 1.7: 1

Pushrods: 5/16" x 7.400"

Lifters: Delphi Hydraulic Roller

Camshaft: Hydraulic Roller

Timing Chain Set: Single HD Roller

525 hp Specs

Cubic Inch / LTR's:372 / 6.2

Horsepower:525

Ft. Lbs. Torque:495

Compression: 10.7.1

Aspiration: Normal

Rev Limit RPM: 6800

Block: Cast Iron

Bore x Stroke: 4.065" x 3.620"

Crankshaft: Nodular Iron

Rods: Forged Powdered Metal

Pistons: Mahle Hypereutectic Alum.

Heads: Cast Aluminum

Chamber CC:70cc

Intake Port CC: 260cc

Intake Port Style: Rectangle

CNC Ported (Y/N): No

Intake Valves: 2.160" Hollow Stem

Exhaust Valves: 1.590"

Valve Springs: Double

Retainers: Lightened Chromoly

Rockers: 1.7: 1

Pushrods: 5/16" x 7.400" .080" Wall Chromoly

Lifters: Delphi Hydraulic Roller

Camshaft: Hydraulic Roller

Timing Chain Set: Single HD Roller

565 hp Specs

Cubic Inch / LTR's:372 / 6.2

Horsepower:565

Ft. Lbs. Torque:485

Compression: 10.7.1Aspiration: Normal

Rev Limit RPM: 6800

Block: Cast Iron

Bore x Stroke: 4.065" x 3.620"

Crankshaft: Nodular Iron

Rods: Forged H-Beam

Pistons: Mahle Forged

Heads: Cast Aluminum

Chamber CC: 68cc

Intake Port CC: 279cc

Intake Port Style: Rectangle

CNC Ported (Y/N): Yes

Intake Valves: 2.160" SS

Exhaust Valves: 1.590" SS

Valve Springs: Double

Retainers: Titanium

Rockers: 1.7: 1

Pushrods: 5/16" x 7.400" .080" Wall Chromoly

Lifters: Delphi Hydraulic Roller

Camshaft: Hydraulic Roller

Timing Chain Set: Single HD Roller

Need Specific Specs? Let Us Know
