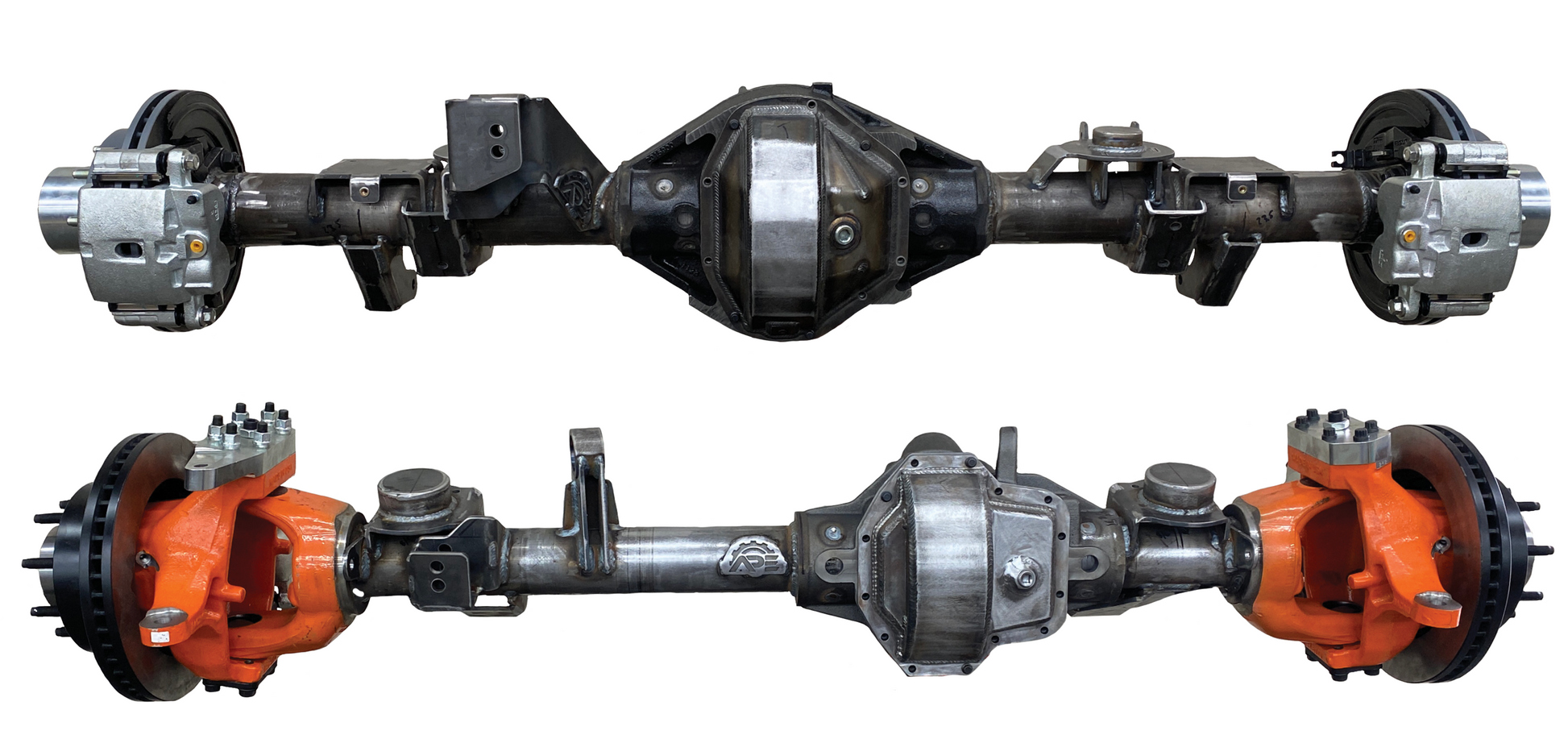

APE Bangerz 60/80 Axle Set 40-Spline Jeep JL HARDCORE SETUP
GO WHEELING WITH UNMATCHED CONFIDENCE!
Fitment: 2018-Current Jeep JL bolt in axle set.
NOTE: This package will not fit Wrangler Rubicon 392 or 4xe Models

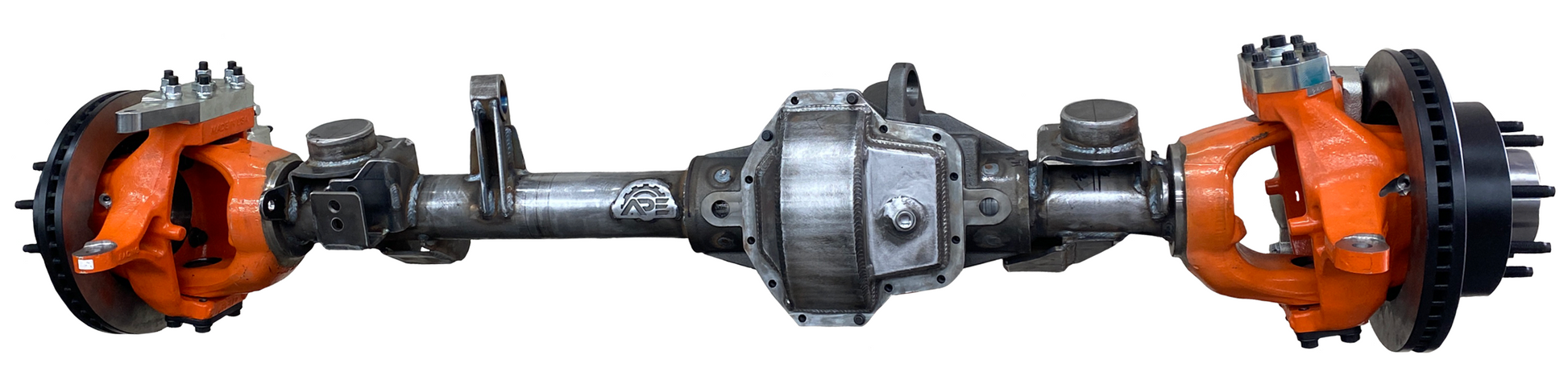

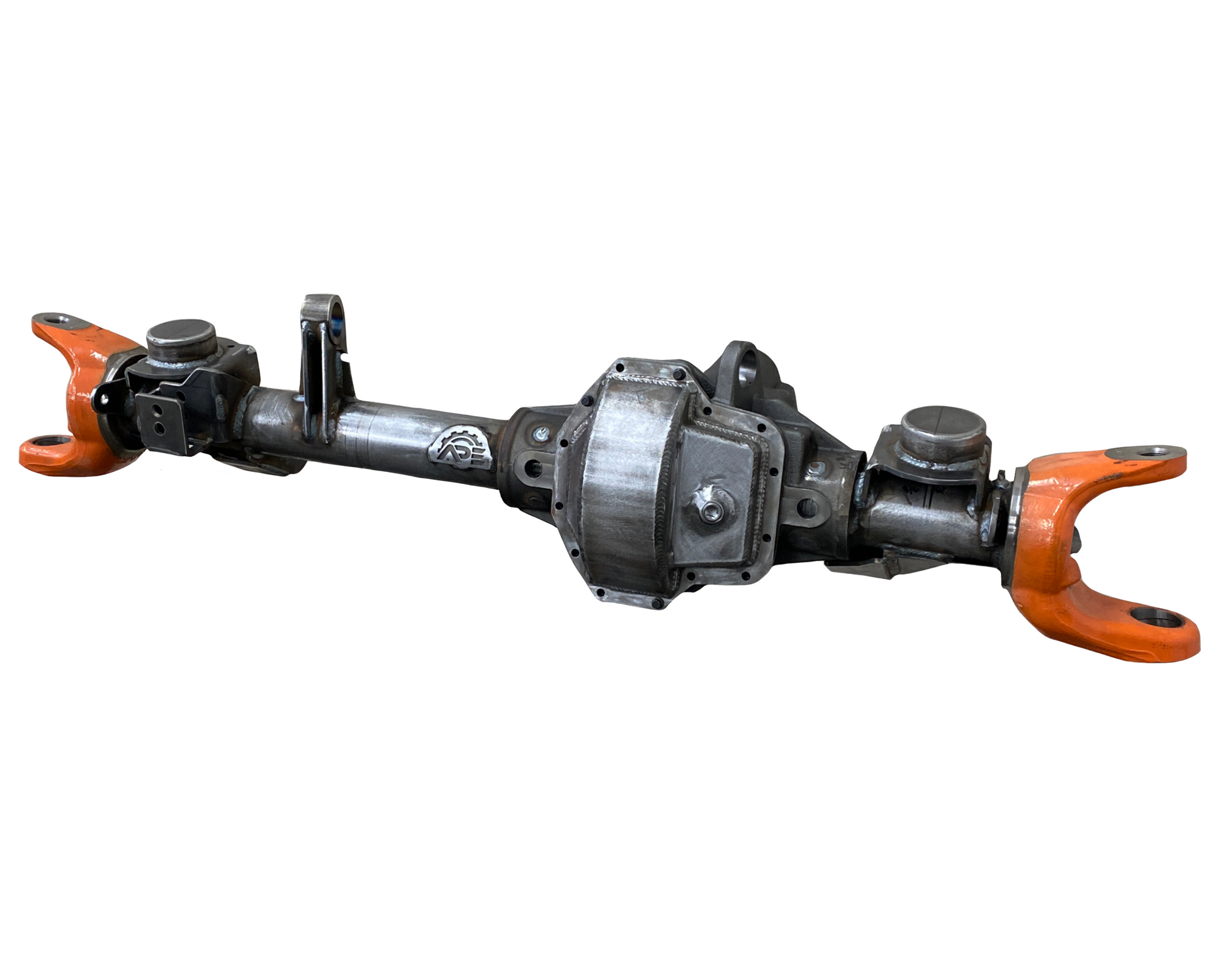

APE Bangerz 60 Front Axle Assembly:
APE Built High Pinion Dana 60 center section sleeved with 3.5" OD 1/2" thick DOM tubing to your desired mounting width
Heavy-duty Reid Racing Super Kingpin D60 knuckles outfitted with machined springless steering arm with ARP studs installed
Massive 1550 40-spline axle shafts assemblies for unmatched strength and reliability.
Upper knuckle steering arm springless tension adjustment to control steering preload and eliminate the kingpin spring failure point
Big Brake Kit to provide unmatched stopping power. Dual piston calipers and massive 13.25" vented rotors are standard
CNC Heavy-duty 1/4" thick bracketry setup for Jeep OEM bolt-in fitment with professionally welded installation
Hardcore 3/8" thick welded diff cover ready to bash any and all rocks
Yukon Hardcore locking hubs installed
Choose between ARB air-locker or Eaton E-locker and your choice of gears
Setup for Jeep wheel speed sensors to prevent computer confusion and check engine / ABS sensor light illumination
8 x 6.5 Lug Pattern

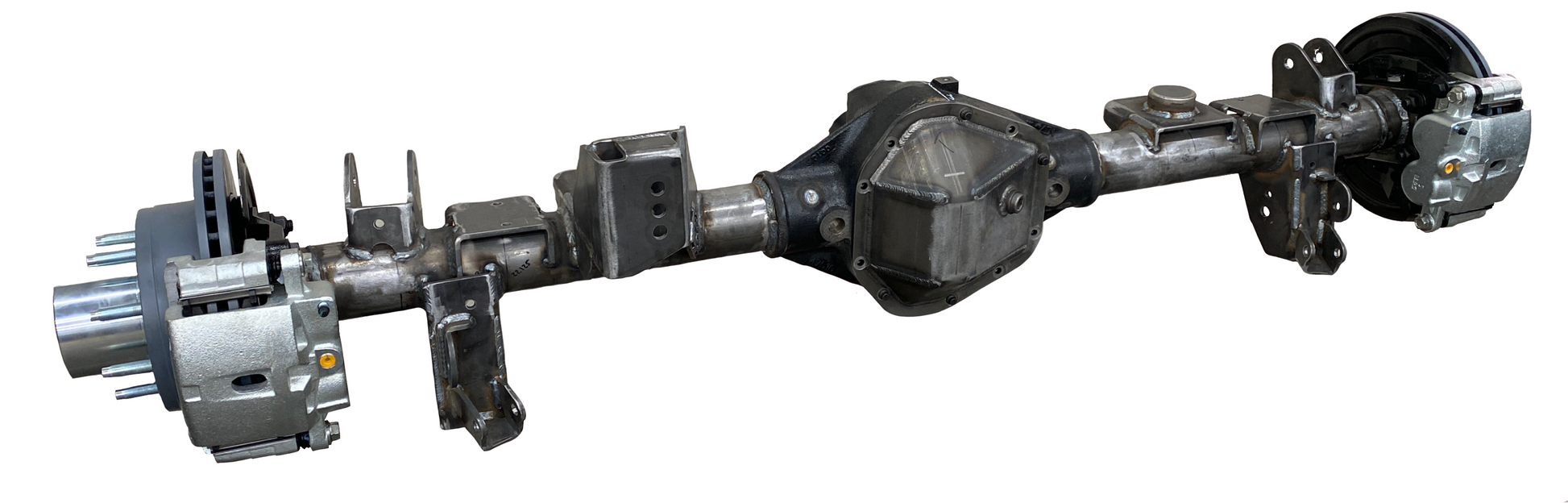

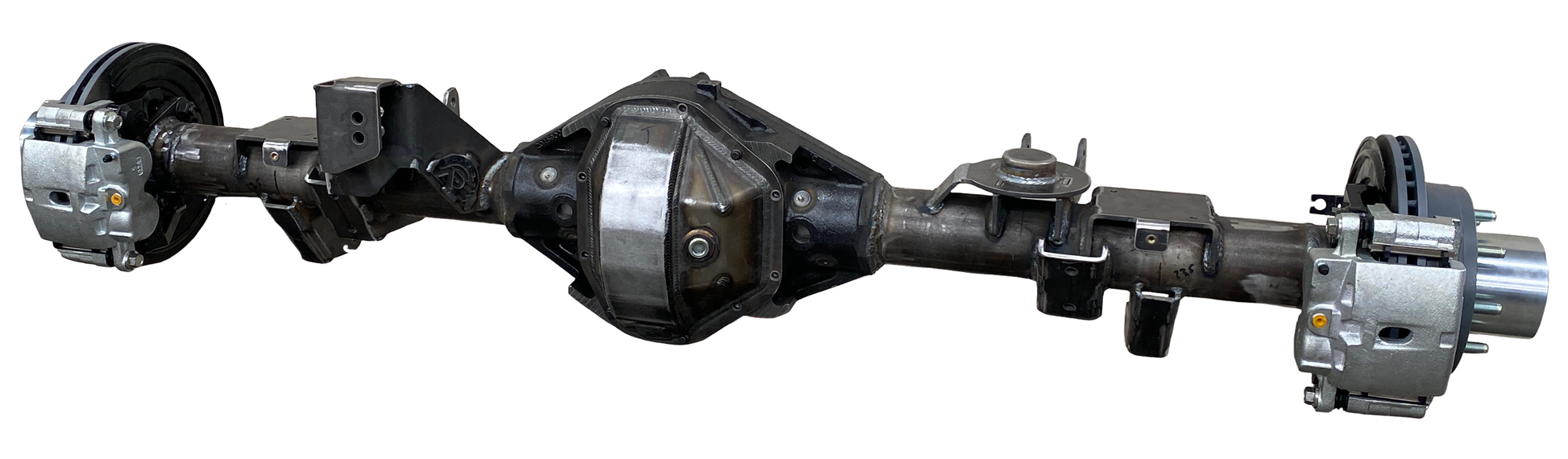

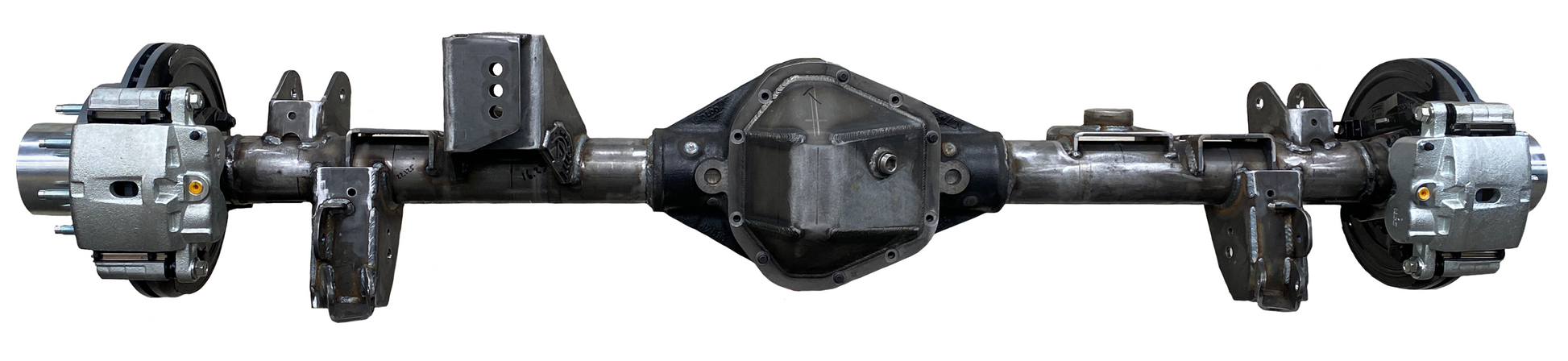

APE Bangerz 80 Rear Axle Assembly:
Massive rear Dana 80 center section sleeved with 4" OD 1/2" thick DOM tubing to your desired mounting width
Massive 40-spline Chromoly axle shafts to eliminate breaking
Heavy duty oversized spindles with oversized bearings for increased strength & durability
Low-pinion standard cut gears for a strong and unmatched rear axle setup
Big Brake Kit to provide unmatched stopping power. Dual piston calipers and massive 13.25" vented rotors are standard
CNC Heavy-duty 1/4" thick bracketry setup for Jeep OEM bolt-in fitment with professionally welded installation
Hardcore 3/8" thick welded diff cover ready to bash any and all rocks
Choose between ARB air-locker or Eaton E-locker and your choice of gears
Tone rings machined into the rear hub assembly to match the jeep wheel speed sensors and prevent any and all computer confusion to eliminate any check engine or ABS light illumination
