DANA 44 DIFF COVER

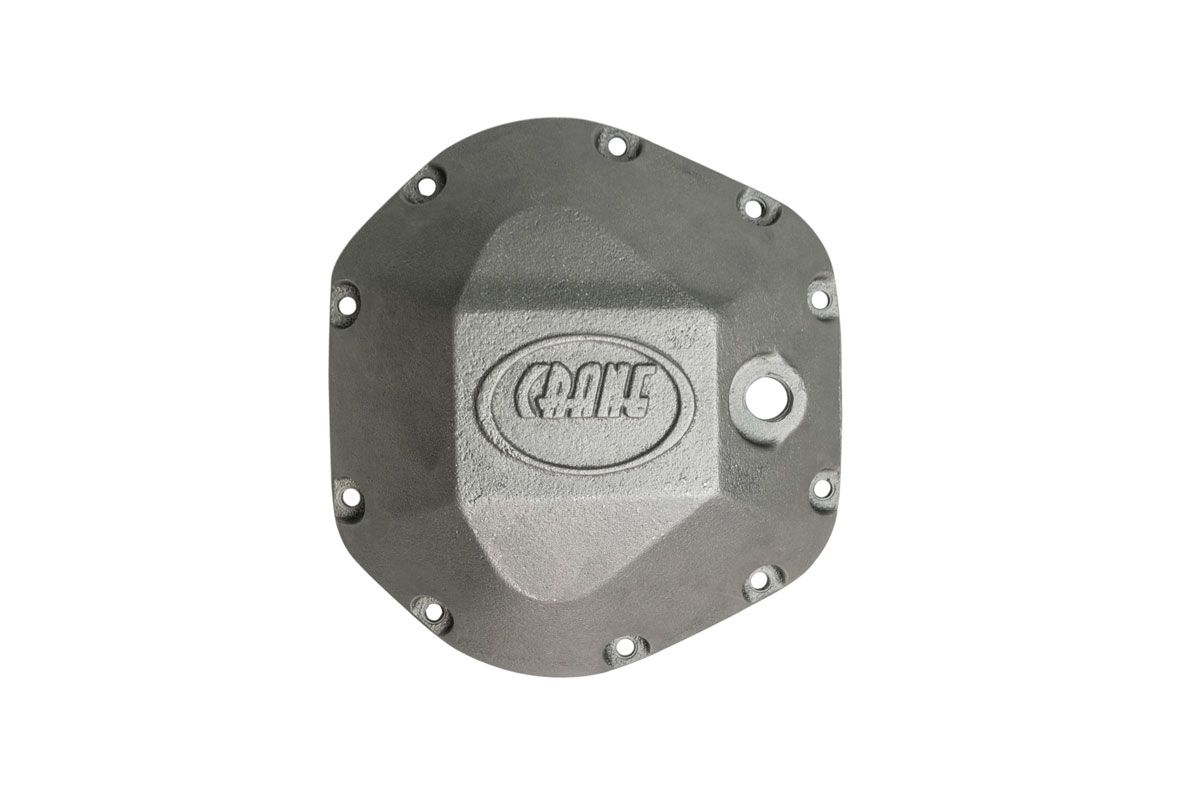

Dana 44 Differential Cover

Diff Covers are Shipped as Unfinished Steel

Crane Axle's Dana 44 Diff Cover is designed for an aggressive, low profile and bullet proof option for your Jeep's front or rear axle.

Prevents Hanging Up on Obstacles

Crane Axle Differential Covers feature a lipless design to prevent hanging up on obstacles. They are engineered in every aspect including the angles designed to clear steering/suspension linkages.

Bolt Heads are Protected from Damage

Crane Axle's recessed bolt land helps protect against damage to the head of the bolts. This keeps your Diff Cover on your Axle Housing even through hard hits. All Diff covers Include Grade 8, 12 point hardware

Built from the Strongest Material Only

Cast from high strength 8620 Chromoly Steel they are fully CNC machined to ensure a perfect fit every time. What does this mean for you? They can take extreme abuse day in and day out.

8620 alloy steel has a much higher carbon content than mild steel. The higher amount of carbon means increased strength. This material is characterized by a hard outer surface, combined with a ductile interior for higher strength. Minimum properties of 8620 (chrome-nickel-moly) alloy steel; Tensile Strength, psi: 97,000 Yield, psi 57,000.

100% USA Cast and Machined

We start with the finest domestic grade 8620 chromoly steel and have our Dana 44 Diff Covers cast in the USA. This allows for strict quality control and for a better end product. After casting, each part is individually CNC machined for maximum precision. Our process ensures a consistent end product every time.

Lifetime Warranty on Diff Covers

Receive a quality product every time. With our Lifetime Warranty against manufacturer defect or failure, you can be confident that the product will do what it is suppose to do.

Dana 44 OEM Fitments:

Crane's Dana 44 Differential Cover will fit Dana 44 axles from the following list of vehicles. The list below indicates all of the OEM axle fitments. They MUST have a Dana 44 axle for this differential cover to fit.

Front Axle

GM

• 1972-1976 K5(Blazer/Jimmy)/K10/K20/k30 (passenger side) Some 1977 K5 Blazers came with Dana 44s in the front, others came with a Corporate 10 bolt solid axle.

Dodge

• 1974–1993 Ramcharger (passenger side)
• 1980–2001 ½ Ton (W150/1500) (passenger side 1980-1993, driver side 1994-2001½)
• 1988–1995 ¾ Ton (2500 Light Duty) (Pass. side 1988-1993, driver side 1994-1995½)
• 1972–1980 (w200) (passenger side)

Ford

• 1959–1979½ Ton (F-100/F-150/F-250) (driver side)
• 1980–1996½ Ton (F-150,) (driver side)
• 1959–1987¾ Ton (F-250 light duty) (driver side)
• 1974–1979 Bronco (driver side)

International Harvester

• 1975–1980 Scout II (4X4)
• 1974 Travelall (100 4X4)
• 1969–73 1200/1210 4X4 Pickup/Travelall (closed knuckle HD)
• 1974–75 200 4X4 Pickup/Travelall (open knuckle HD)

Jeep

• 1967–1973 Jeepster Commando and Commando
• 1974–1991 Wagoneer (passenger side 1974-1979, driver side 1980-1991)
• 1974–1983 SJ
• 2003–2006 TJ Wrangler Rubicon (front and rear)
• 2007-2015 JK Wrangler Rubicon (front and rear)
• 1987–2001 Venezuelan XJ (front and rear)
• 1996-1998 Jeep Grand Cherokee made on Venezuela

Rear Axle

Jeep

• 1948-1975 CJ
• 2003–2014 Wrangler Rubicon
• 2006–2010 Grand Cherokee SRT8
• 2004–2006 Wrangler "LJ" Unlimited
• 1997–2006 Wrangler (optional: available starting 7 July 1997)
• 2007–2015 Wrangler (optional on 2007, standard '08-present)
• 1987–1990 XJ (tow package)
• 1987–1992 MJ (Big-Ton/Burly Package)
• 1986 CJ-7
• 1996-1998 Jeep Grand Cherokee made on Venezuela

International Harvester

• 1971½–1980 Scout II
• 1974 Travelall (100 4X4)

Isuzu

• 1993–2004 Rodeo (Honda Passport, Holden Frontera)
• 1994–1997 Rodeo (Honda Passport)

Mitsubishi Montero/Pajero

• 2000–2010 installed in some of the Venezuelan Dakar models.
