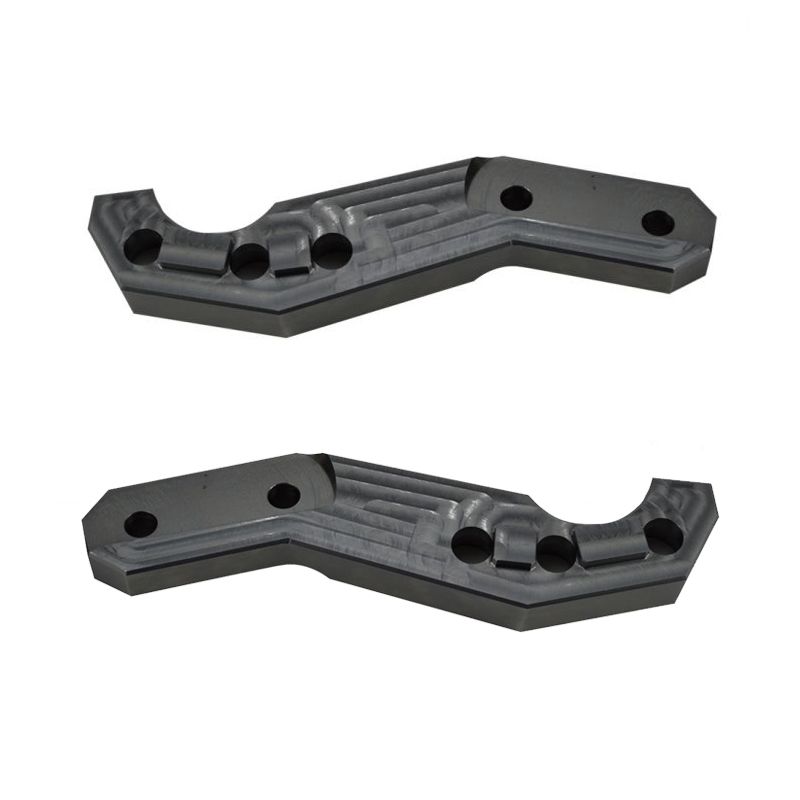

Dana 44 Interlocking Hi Steer Arms

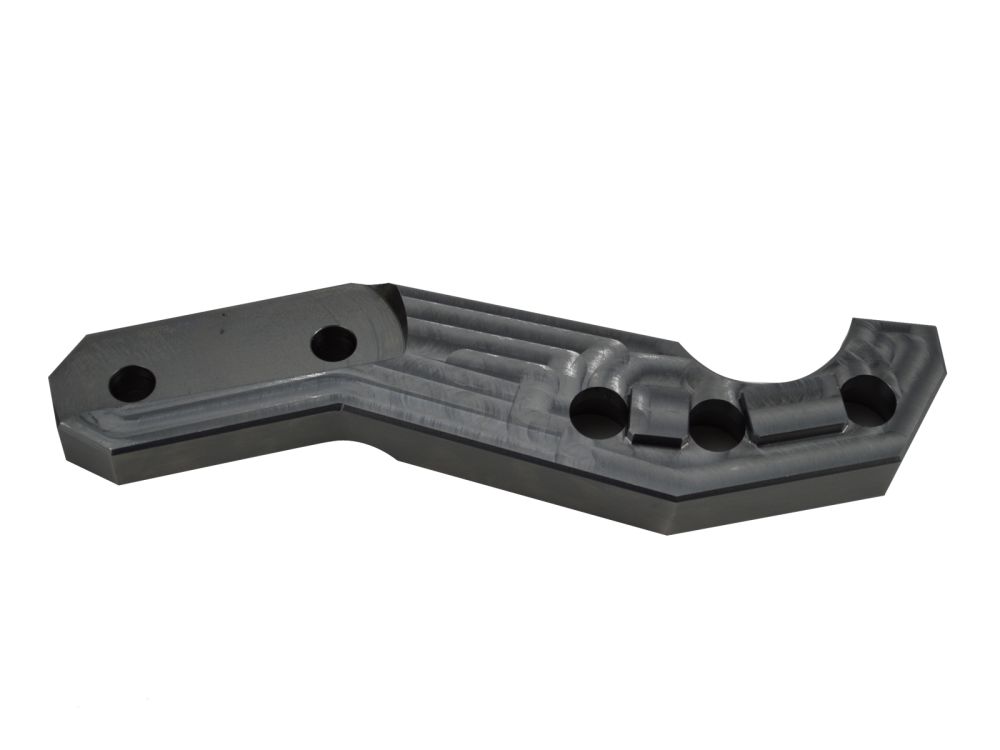

Crane Axle's Interlocking Right Hand (passenger side) Dana 44 Hi-Steer Arm. This arm is made to use with Crane's Extreme Duty Interlocking Steering Knuckles.

Arms are built out of 1018 CR Steel right here in the U.S.A. for superior strength and perfect fit. Built to be used with 5/8" studs and cones.

Crane's hi-steer arms are piloted 1/2" for ease of locating tie rod/drag link holes. They can be tapered to run 3/4 ton and 1-ton tie rod ends. The hole can be opened up to run 5/8" or 3/4" rod ends also.

Crane's Dana 44 arms are 7" from the center of the balljoint to the center of the outside steering hole. Overall length is 10".

These arms can handle up to a 5" back spacing wheel when utilizing rod ends.
