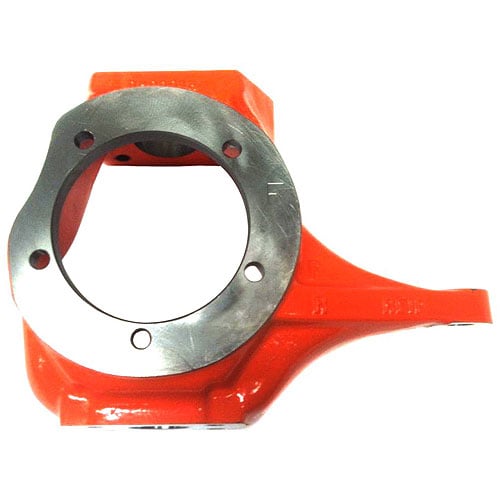

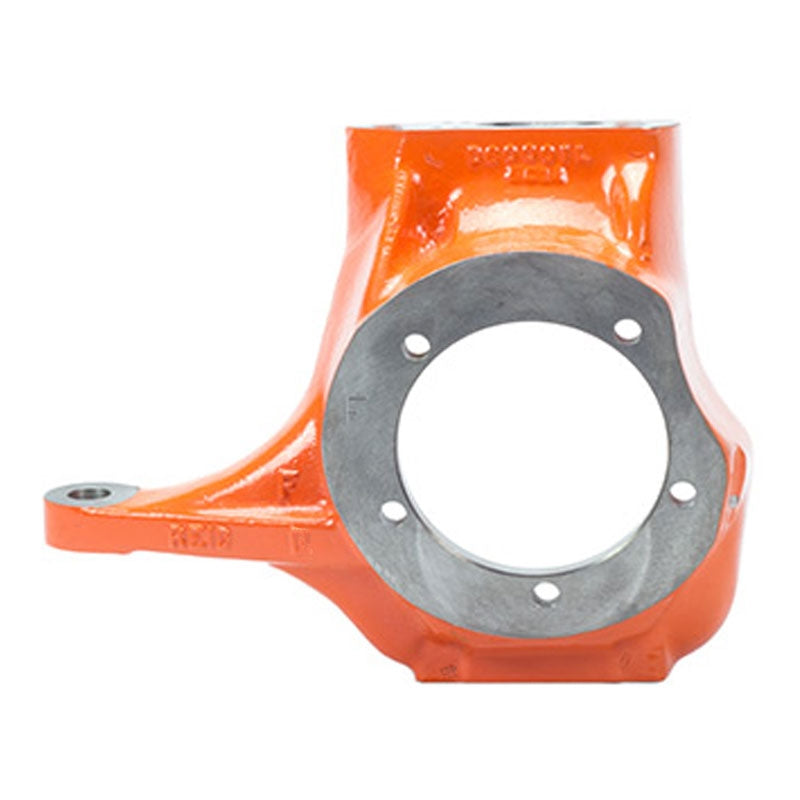

REID Racing Dana 60 Kingpin Ford Steering Knuckles

REID Racing Dana 60 Kingpin Ford Steering Knuckles

Regular price $500.00 USD
Regular price Sale price $500.00 USD
Sale Sold out

Product Description:

  • D60001FL (left, driver’s side)

  • D60001FR (right, passenger’s side)

  • The strongest Dana 60 knuckles on the market

  • Cast from high strength ductile iron

  • Beefed up with extra material and ribbing

  • 100% interchangeable with a Ford kingpin knuckle except uses stronger Chevy tie rod ends

  • 5th bolt hole for high steer arms (4 bolt arms still fit)

  • Cast in steering stop eliminates bent stop bolts

  • Accepts one ton Ford brakes with no modifications required

  • Tie rod holes can be drilled to accept 3/4″ rod end

  • Powder coated bright Orange® for long lasting looks

  • Fully machined and ready for installation

  • Left and right knuckles sold in pairs

  • Ford versions are based on the stronger Chevy casting: they will accept factory Ford spindles and brakes, but they use the lower Chevy style steering arm and Chevy tie rod taper. Some steering modifications may be needed on Ford applications, call for details.

Steering Knuckle Instruction Sheet

Dealer inquiries welcome. Knuckles for off road use only.
There is no warranty on this product.
